Download details
320CODESIGNS4L 320CODESIGNS4LV0.2 HOT
(1 vote)

Dump for T-CON Board 320CODESIGNS4LV0.2

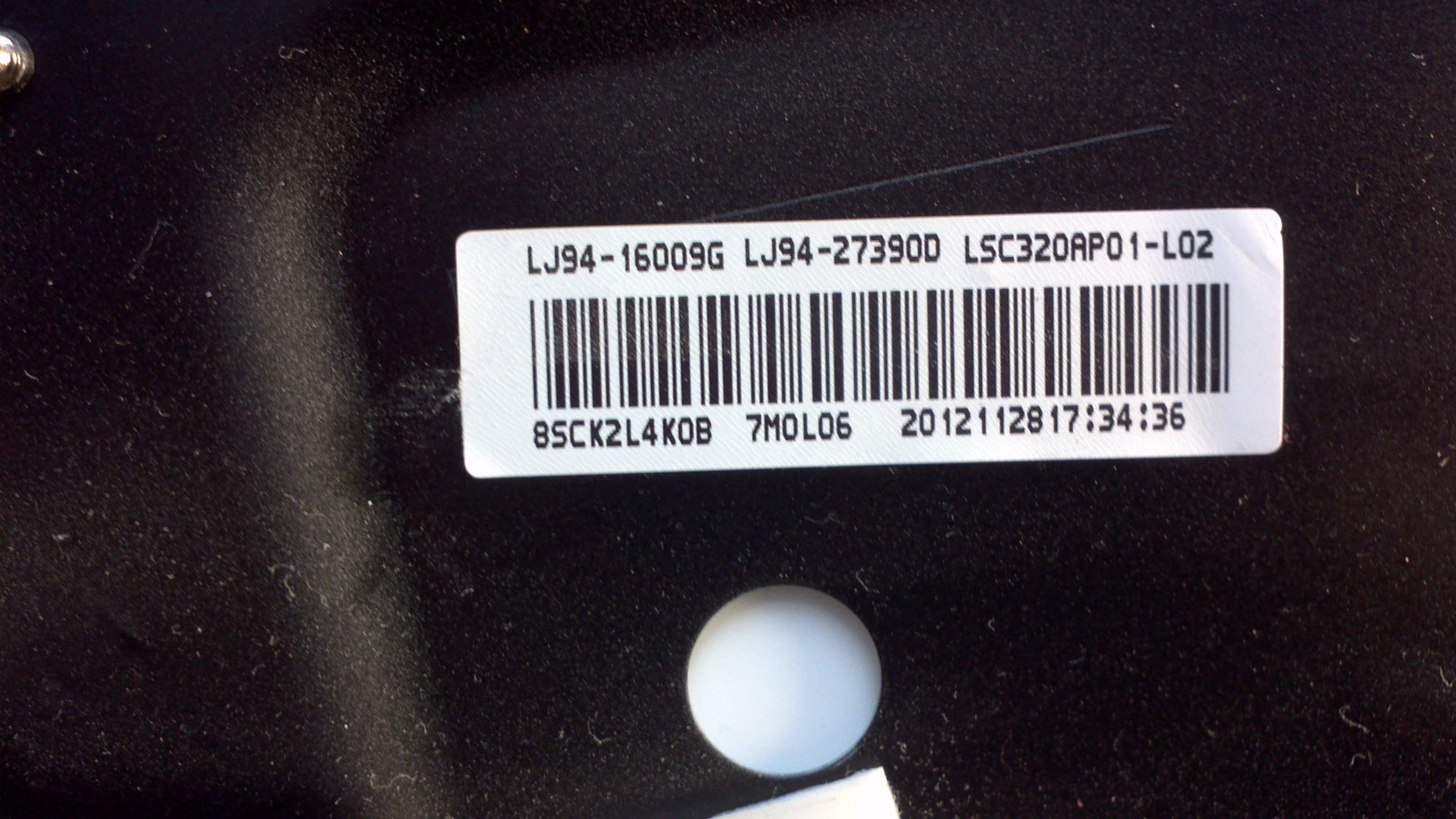

sticker: LSC320AP01-L02

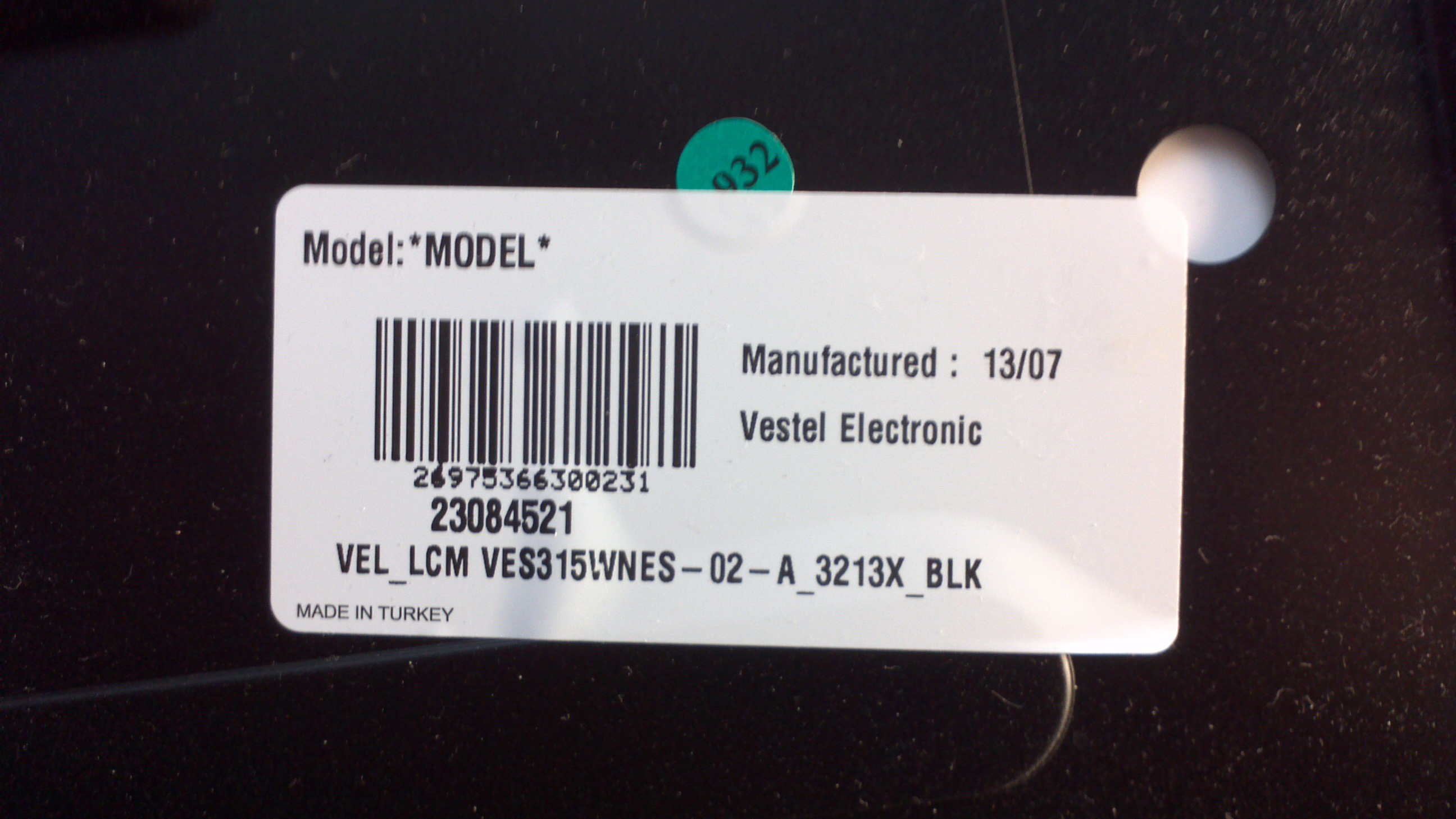

Panel: VEL_LCM VES315WNES-02-A_3213_BLK

EEPROM: 24C64

От тв Neo LED-32135US, chassis: 17MB62-2.6

2014-10-30_11-34-41_74_0
2014-10-30_11-35-15_2702
2014-10-30_11-35-31_21903
Data
Created 04.02.2015, 20:56
Changed 12.04.2016, 22:32
Size 2.14 MB
Rating
(1 vote)
Filename T-Con_320CODESIGNS4LV0.2.rar
Memory 24C64
Created by ciklon
Changed by ciklon
Downloads 134
Price 5 points
Only registered and logged in users can download this file.

Comments

kaddour
# +3 Asked shematic — kaddour 2015-10-07 02:05
:D Asked shematic :cry:
ciklon
# +2 RE: 320CODESIGNS4LV 0.2 — ciklon 2015-10-07 14:26
Quoting kaddour:
:D Asked shematic :cry:


No schematic :cry:
Migusyluz
# -1 RE: 320CODESIGNS4LV 0.2 — Migusyluz 2017-12-06 14:49
No hay esquema
ciklon
# RE: 320CODESIGNS4LV 0.2 — ciklon 2017-12-06 18:22
This is dump.
NicDrag
# T-Con_320CODESI GNS4LV0.2--24C6 4.BIN — NicDrag 2024-02-19 20:14
T-Con_320CODESI GNS4LV0.2--24C6 4 bin file is corupted
